Battery Relocation
Why do I want to relocate my battery?
- To provide more room in the engine bay area
- So you can fit a straight air intake
- So you can fit a custom cold air box to lower your intake temperatures
What is the benefits of the above?
- More room means less clutter, better access to 'stuff' and less complexity
- To improve output power, improve turbo spool up time
- To reduce the chances of
detonation
Where can I put the battery?
I have seen the battery and air box "swapped
over", specialist sealed batteries located under passenger seat, in the
passenger foot and also in the boot. Personally I think the best place for the battery
is in the boot.
What's the pros and cons of those locations?
Battery and air box swap
- You are still left with a 'full' engine bay.
- Hot engine bay air is drawn into the engine, a cold air box with this approach would be very
difficult to sort out.
- The battery is still subjected to engine bay temperatures, shortening it's life.
- On the plus side it's pretty easy to do and you don't need extra fuses or cabling.
- You'll need to do something to mount/secure the fuse box...
Specialist sealed batteries stuck somewhere
- If the battery must be put in the cabin area then you need to buy a specialist
battery to protect you from the harmful gases that emanate from the battery.
That means more £.
- Need to securely mount the battery in the cabin area - somewhere!
- You will need extra fuses and cables for this option.
- You'll have to mount the fuse box somehow...
- The battery will be protected from the elements as it'll now be inside the car.
- High risk of fire if you fail to install this correctly.
- As you're limited for space you may well have to settle for a lower spec battery.
In the boot
The best place in my opinion.
- The natural/designed flow of air through the car is from the front to the back,
therefore placing the battery in the boot locates it near to the exit points
for the air travelling through the car ensuring you don't breathe in any
horrible gases
- Placing it in the boot is out of the way and frees up the engine bay area for a
straight air intake. However, you'll loose some boot space.
- The fuse box will need to be mounted differently
- You'll need extra fuses and cabling - £
- Powering up your "in the boot monster stereo" will be a lot easier
- The battery will be protected from the elements as it'll now be inside the car
- The trickiest method of the three
- You MUST correctly fuse the battery, select the correct cable size and run the
cables to a high engineering standard
- High risk of fire if you fail to install this correctly
- Need to find a way of securing the battery in the boot
- You can use your existing battery
The rest of this article only covers locating the battery in the boot.
What do I need?
- A box to put the battery in
- Cable capable of carrying ~85A minimum
- Minimum of a fuse located at the battery ~150A
Preferably another in the engine bay 100A. If only fitting the battery fuse
then make this a 100A fuse
- Short length of cable crimped at both ends for
the negative/earth connection ~0.5m
- Long length of cable crimped at both ends for the main cable run ~5m
- Insulated box to mount the engine bay fuse and join the battery wiring to the existing wiring
Hmmm - battery box?!?
You need a method of securing the battery in the
boot to stop it falling over or moving around.
Demon Tweeks make a
plastic battery box. Not seen one in the flesh so can't comment on how good they
are. I made one from Plywood covered with blue carpet!
|
|

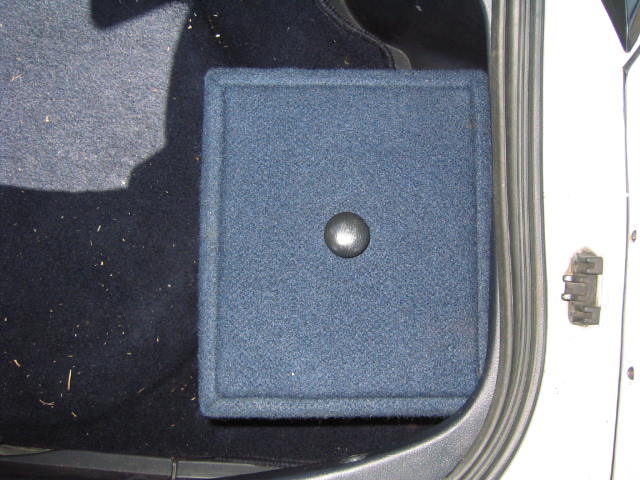

Battery box |
Lid removed |
I secured the box by welding a nut onto the floor
pan and bolting it down. Self tapping screws would also do the same job.
Caution the petrol tank is below - look before you drill!
I made the dimensions just a little bigger than the box to
ensure a snug fit, and then placed a strap over the top to keep everything where it should be.
Drill a couple of holes in the side of the box large enough to
let the cables and crimps easily pass through. These will also act as breather
holes should any gases be produced.
As the box is a snug fit I also fitted a carrying/lifting handle
around the battery before lowering into its new home.
What size cable?
Firstly, if in doubt go BIG - get a large diameter cable. Big is beautiful.
The starter motor is rated at 1kW. Doing a bit of
maths (boring) shows that the current drawn by the starter motor is ~85 amps.
Therefore, you need cabling that at the very least carries 85A. Try
vehicle
wiring products they list 3 sizes of battery cables. I didn't get mine from
these people but I did get the 40mm2
cabling...their biggest.
|

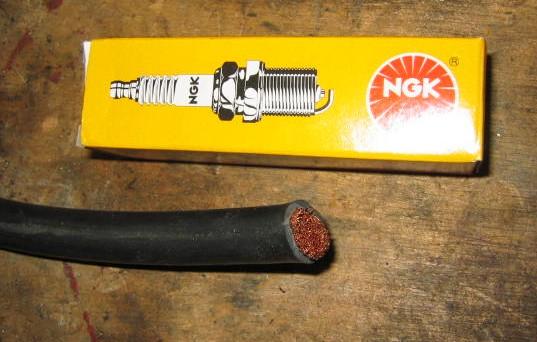

40mm2 cross sectional area cable |
What if I get the cable size too small/wrong?
Starting the car draws the most current. If the cable is too small then it will begin to heat at a fast rate, increasing the
risk of a fire. This will also make the car turn over slower and make it harder
to start. Also, once the car is started then as the cable is too small the
current flowing from the alternator to charge the battery will fall as the cable has a
relatively high resistance... This is because the resistance of the cable
increases with the reducing cross sectional area - in English, smaller cable
bigger resistance, less charging, more heat, more danger.
Why do I need a fuse?
Okay, you've run your cable, stuck the battery in the boot, the car goes better than before - everything is marvellous.
Over a period of time your cable may start to rub or chaff on an exposed metal corner/weld etc. As the chaffing continues it will
wear through the insulation of the cable until it reaches the inner conductor. If
the conductor touches the metal then the positive side of the battery will be
directly connected to the negative side of the battery - very very bad. If the
battery doesn't explode or catch fire, then the cable will heat to ridiculous temperatures. The
cable will heat and maybe set fire to the carpet. You'll have big troubles putting the fire out as
you'll need to disconnect the battery and lift up the carpet...you're gonna need a new car.
|
|
GET A FUSE AND INSTALL IT |
|
|
What sort of fuse do I need?
I have installed a couple of fuses. One at the battery and one at the cable joint in the engine bay.
The battery fuse you can obtain from RS, part numbers:
342-0205 - Bracket
342-0198 - Insulating nut (buy 2 or 3 as they crumble easily)
337-7959 - 150A fuse
|
|
|
Fuse at the battery 150A |
Fuse in the engine bay 100A |
Maplin's circuit breaker - 100A. Part No DR92A. I
haven't installed one of these... |
Engine bay fuse can also be obtained from RS, part numbers:
431-6876 - Fuse holder
431-6747 - 100A fuse
431-6753 - 125A fuse
431-6769 - 150A fuse
Anything else about the fuse?
Get spares. If you try and start the car when it
is in gear and you haven't got your foot on the clutch then you'll easily pop a
100A fuse. Carry spares you might need them! I think it is advisable to buy a
couple of each fuse listed above, just in case you find you need a slightly
larger fuse for your car e.g. starting your car in the depths of winter may take
a little more current... I have been running with a 100A engine bay and 150A
battery fuse for 6 months with no problems.
What's the best route for the cable?
Poke it through the big rubber boot top right
hand side of the engine bay. Down behind the glove box under the carpet
across to the passenger side kick plate. Down and along the sill up over the seat
against the plastic trim.
Then along the metal cross member by the fuel pump. Then back into the drivers
side of the boot by the jack.
Have you got a few pictures of your installation?
A step by step guide...
When running the cable avoid sharp corners, burrs, weld marks and anything else that is remotely sharp.
|

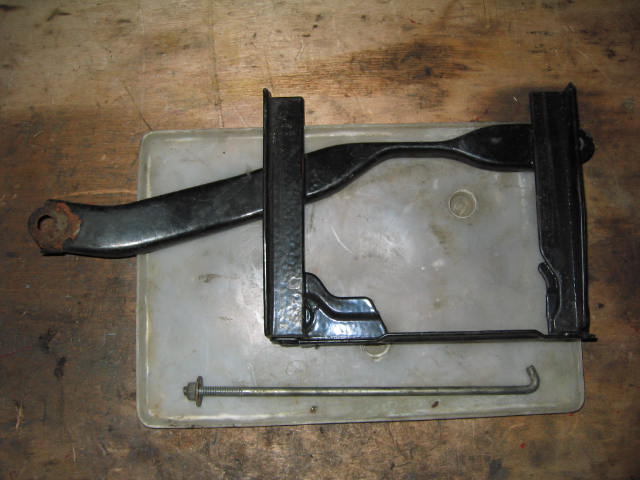

Completely disconnect the battery. Remove the battery, securing bracket and plastic tray |
|

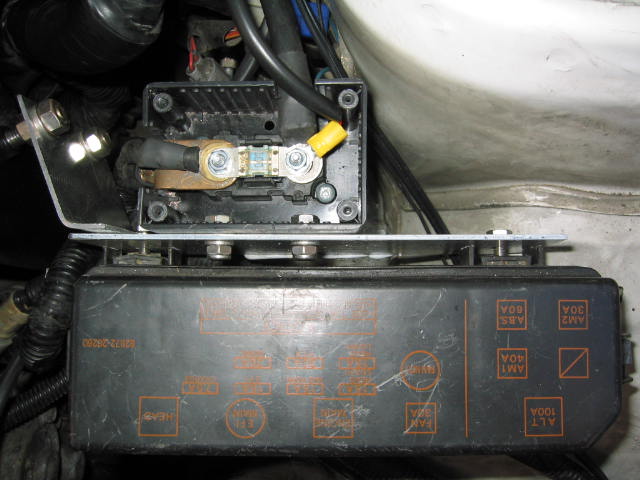

Mount your engine bay fuse somewhere. I had previously fabricated a plate to support
the fuse box. I simply bolted this onto the side of it. This will conveniently connect the existing wiring to the new wiring via one of the fused links you got from RS. 100A fuse is suitable. It's also a handy place to connect up other items to 12V e.g. Water Injection |
|

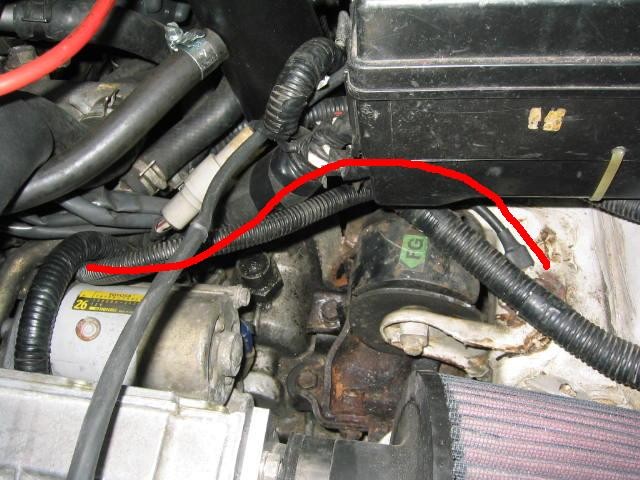

If I 'remember correctly' the negative of the battery connects directly to the
chassis and to a starter motor bolt. You'll need to cut this wire and connect the starter motor bolt directly to the chassis as shown here - the red lines indicates the path of the earth wire |
|

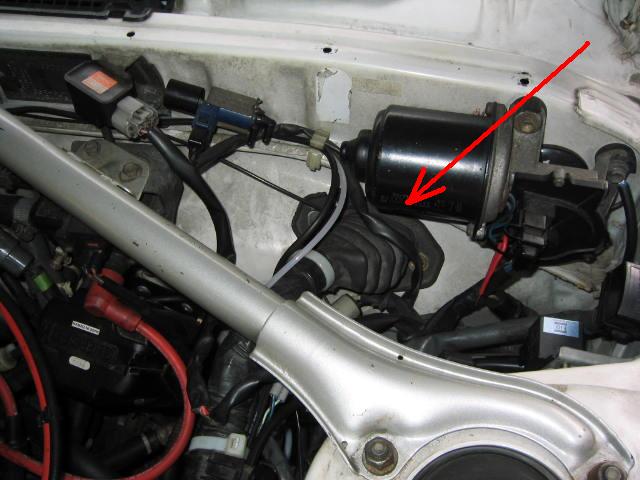

Take your cable and run it through the big rubber connector on the back right hand
side of the engine bay. This brings the cable out above and behind the glove box |
|
Next clear the route for the cable. Remove the glove box to
gain access to the cable you poked through. Also remove the passenger kick
plate. Remove the rear seat. Fold the rear seats down and lift up the
carpet in the boot. Remove the wooden "thing" bolted above the fuel pump. |
|
Carefully run the cable over to the left towards the door. |
|

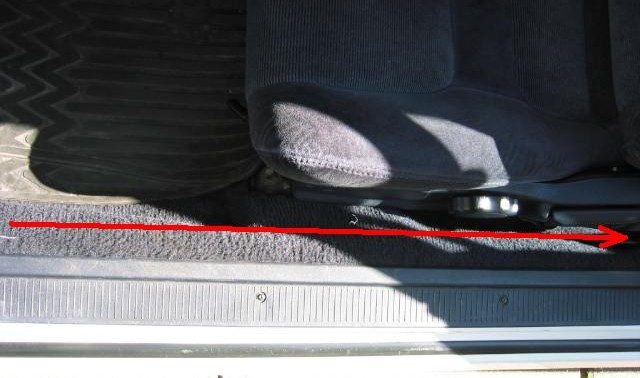

Lift up the carpet and run the cable down next to the sill.
Cable tie this as you go. Cable ties will help to stop the cable moving around and chaffing... |
|
Feed the cable along the edge and under the plastic trim
next to the rear seat and then along the metal cross member by the fuel
pump and then backwards towards the jack. Don't forget to cable tie as you go |
|

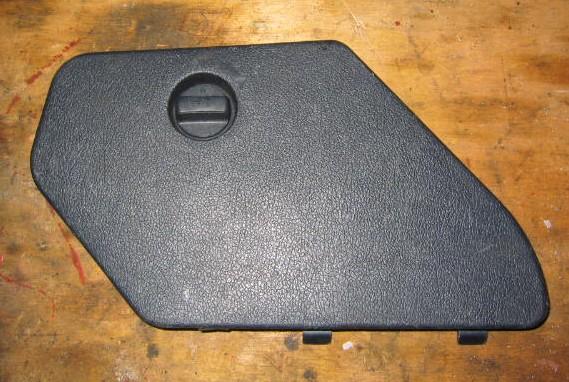

Remove the plastic trim covering the jack |
|

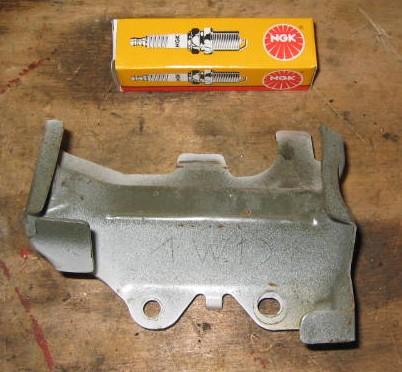

Remove the jack and the jack mounting plate |
|
Mount your freshly made battery box tight up against the plastic trim. Cut holes in
the side of the box before mounting it so that you can pass the cables AND crimps through! |
|
Install the battery in the box. Connect the negative to the bolt directly behind the box and also to the battery. Make sure this is an
excellent connection - no paint between bolt and chassis! Then connect up the positive to the battery via the fused link. You'll notice that there
is a vent next to the rear light cluster, so any gases produced will be vented out through here |
|
To test everything is okay remove the coil to distributor lead and turn the car over a couple of time for ~10 seconds. Have a feel
of the cable. Is it hot? If it is then get a bigger cable |
Anything else?
Get the cable crimped professionally. You'll probably need hydraulic crimps if you fit the size of cable I did - 40mm2.
I cannot emphasise enough how important it is to run the cable correctly and to fit at least one fuse.
Disclaimer
This article was written as a helpful guide as to how I relocated my battery. This should only be performed by a qualified mechanic/engineer. If you are in any doubt or not
qualified then don't do it. Altering the design of the car from the manufacturers specifications is not recommended.
