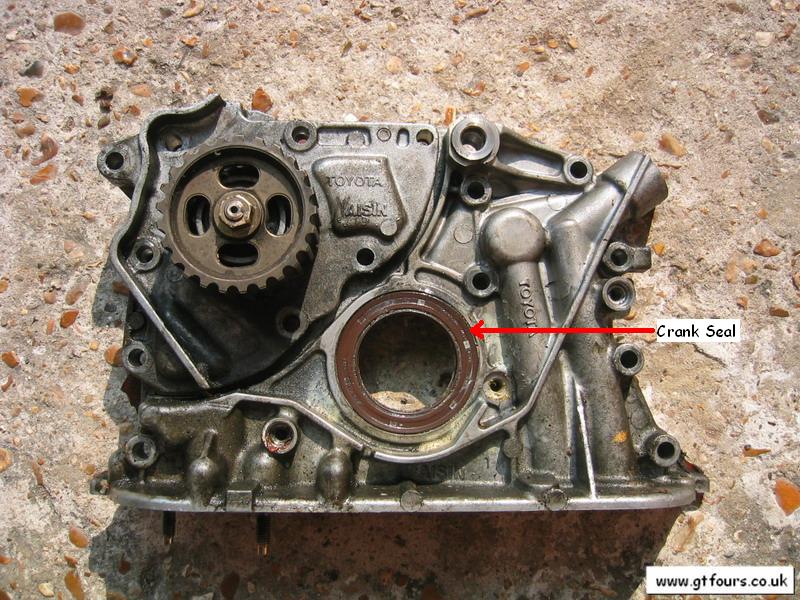

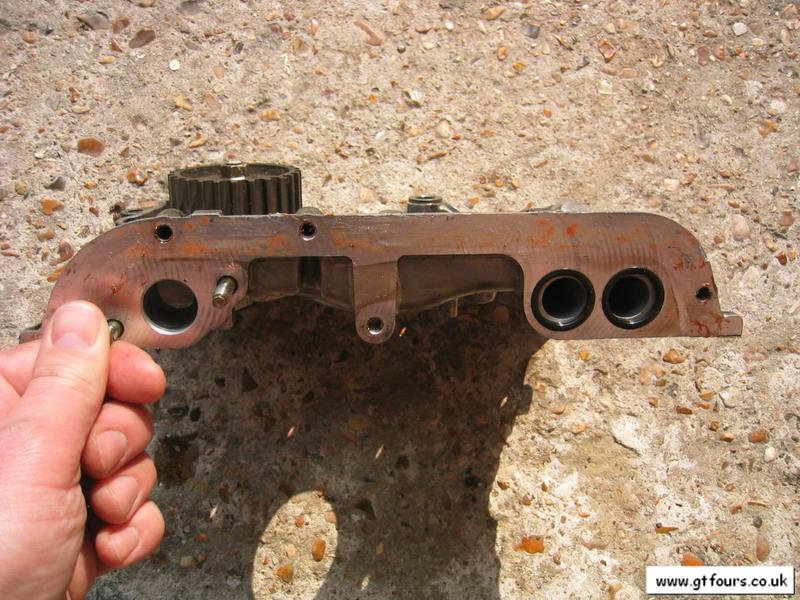

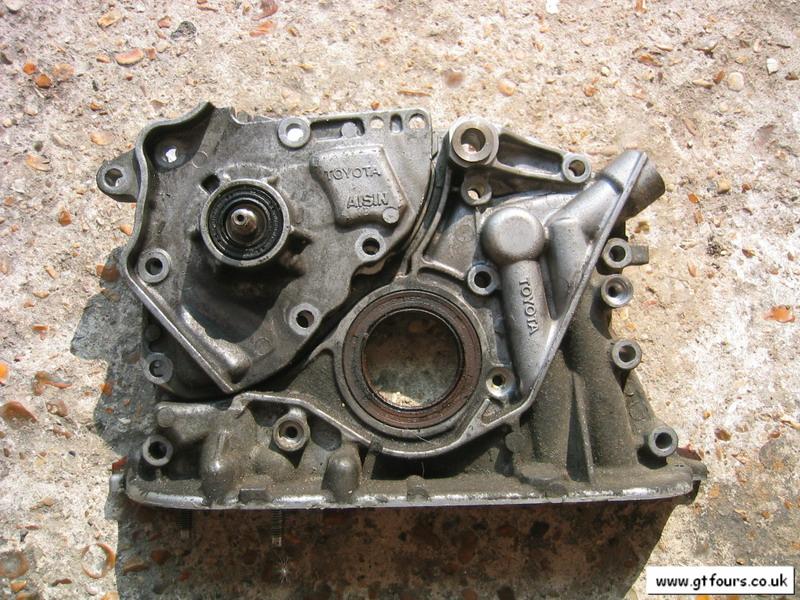

| The sprocket measures 62.2mm OD with 25 teeth | View of the bottom of the pump, note the 2 sealing o rings | Rear view. The input to the pump is at the mid right hand side, output top middle | With the sprocket removed |
 |
 |
 |
 |

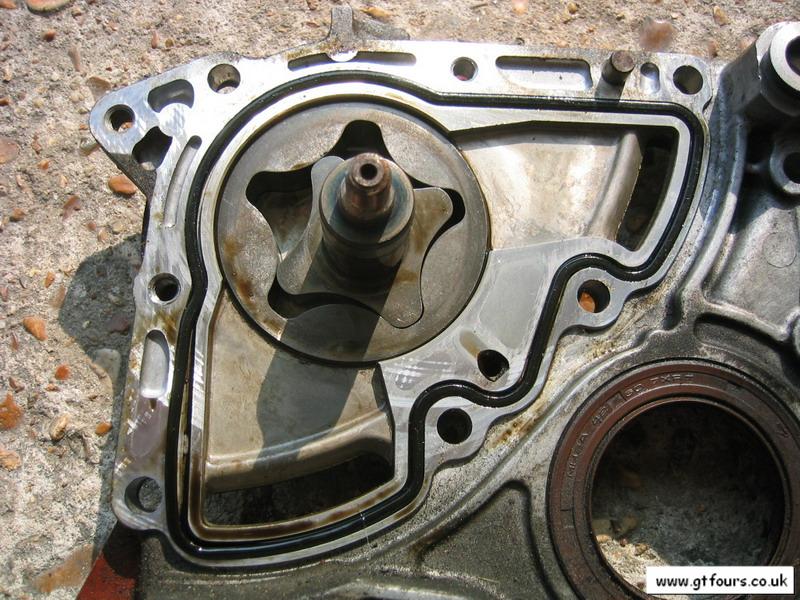

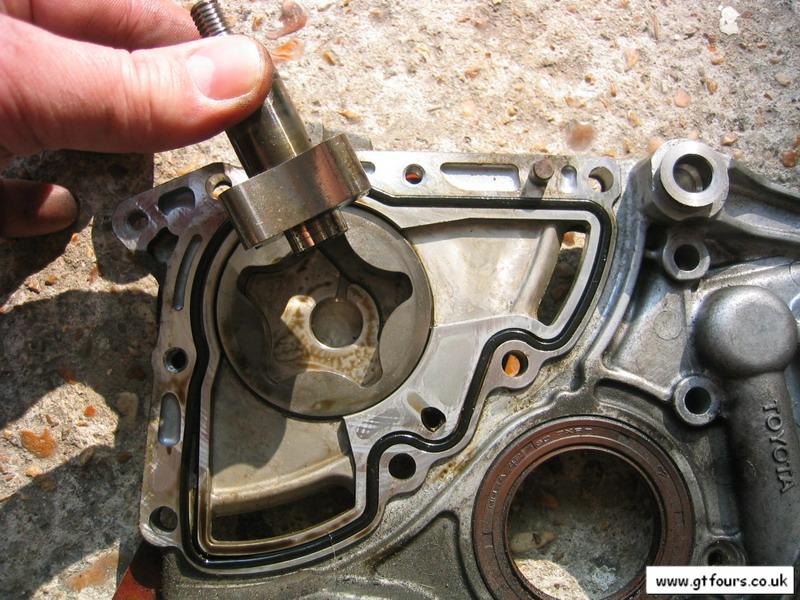

| Removing the pump cover | Exposing the insides of the pump | Close up of the pump | Removing the gerotor from the pump |
 |
 |
 |
|

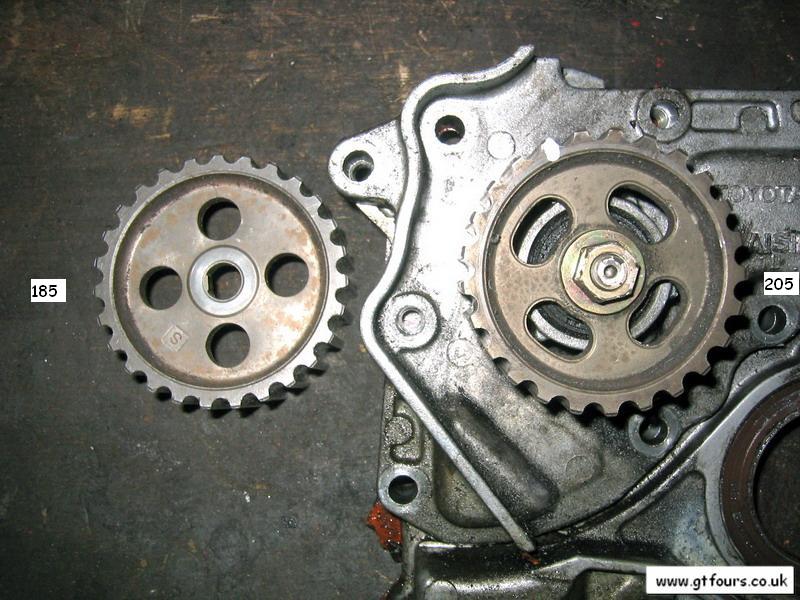

| Both sections of the pump removed | Picture shows the width of the pump | Comparison of a 185 and 205 oil pump sprocket | |
