CP Pistons

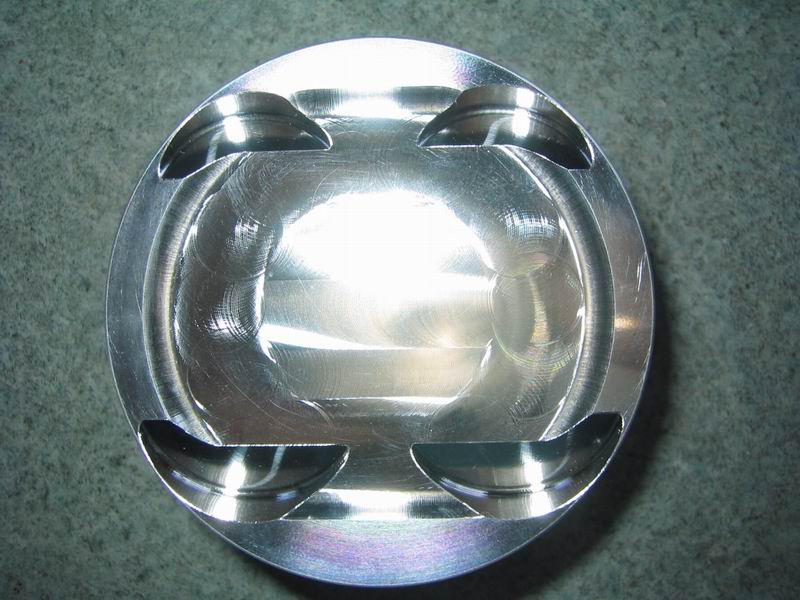

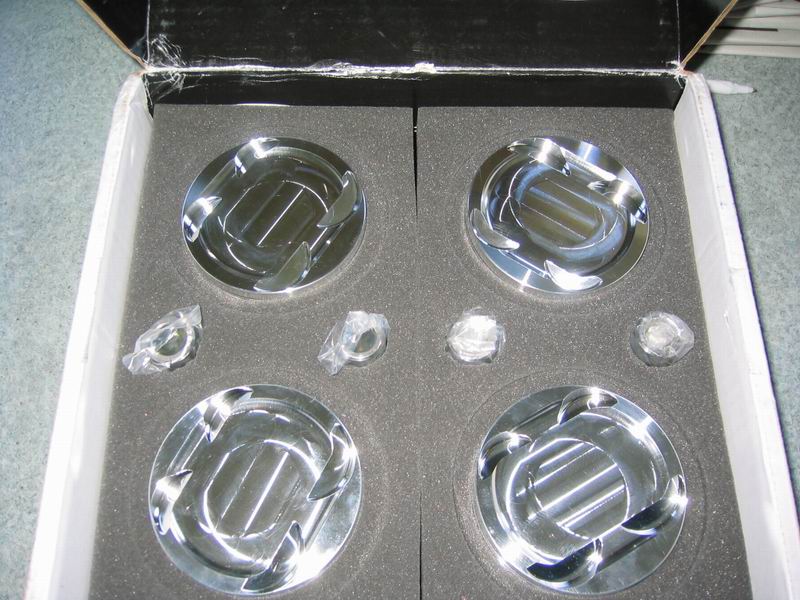

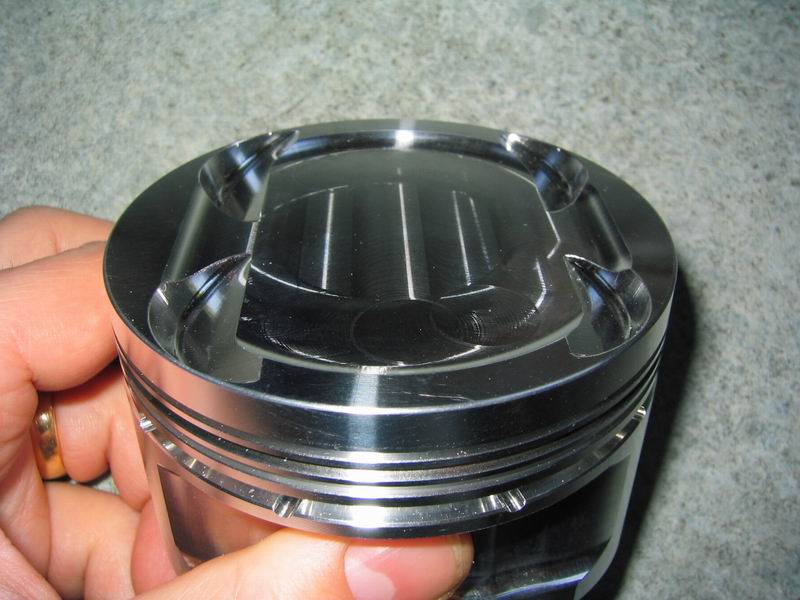

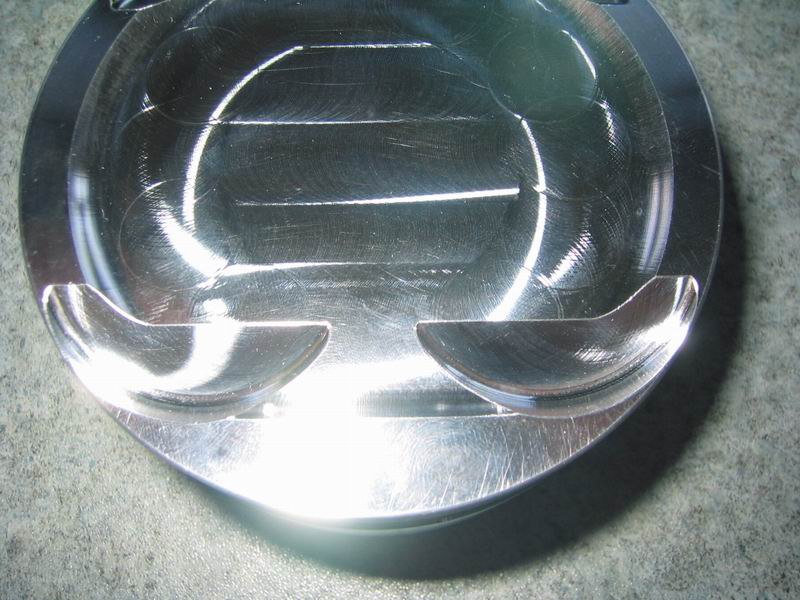

CP obviously care about their product as they arrive well protected Top of the piston Machining marks are visible but cannot be felt! Side view showing the dished nature of the top of the piston

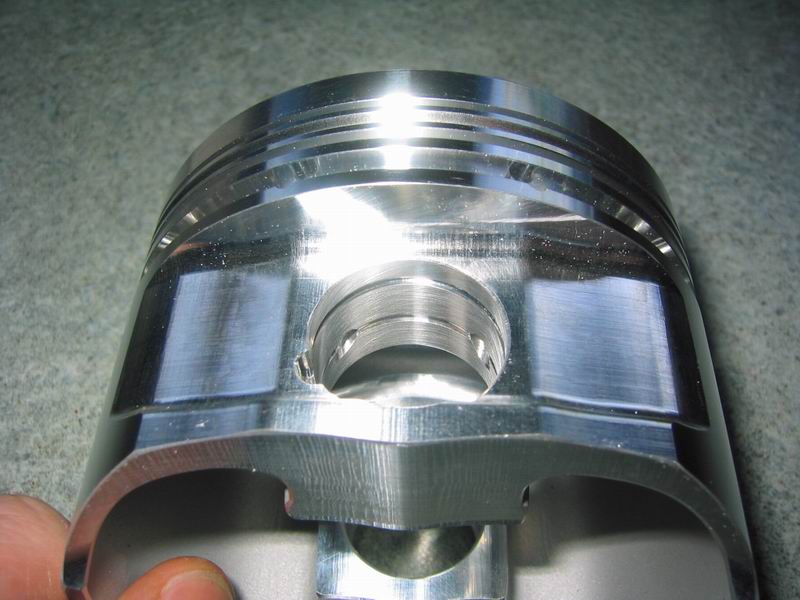

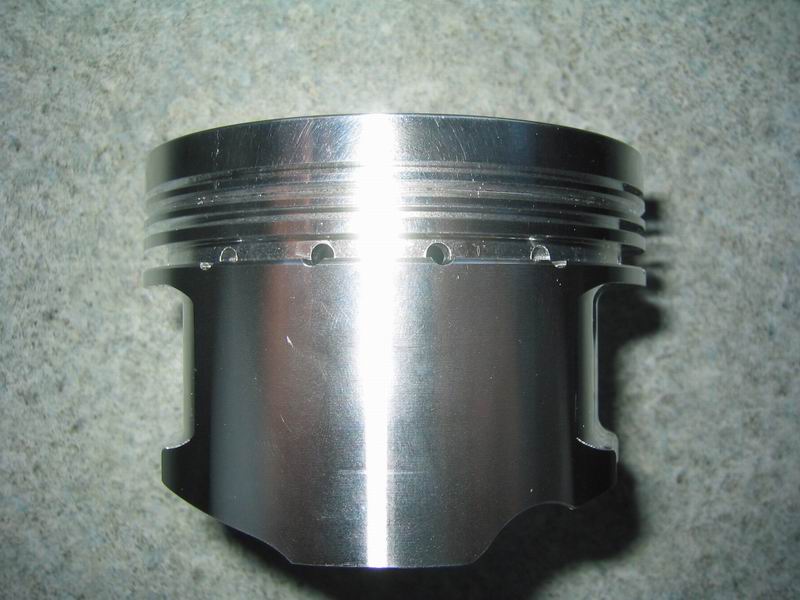

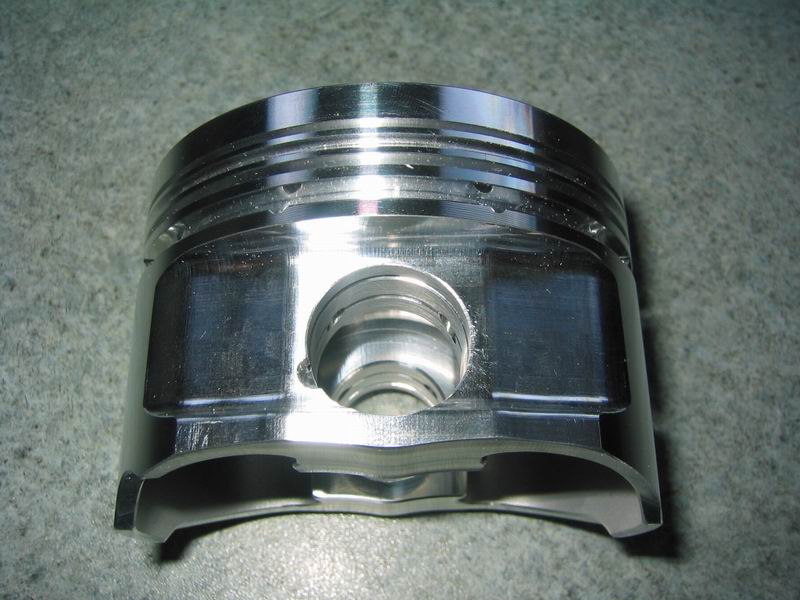

Side view Note the oil feed to the gudgeon pin Piston side/skirt There is a raised portion above the centre of the pin location hole, probably to add strength

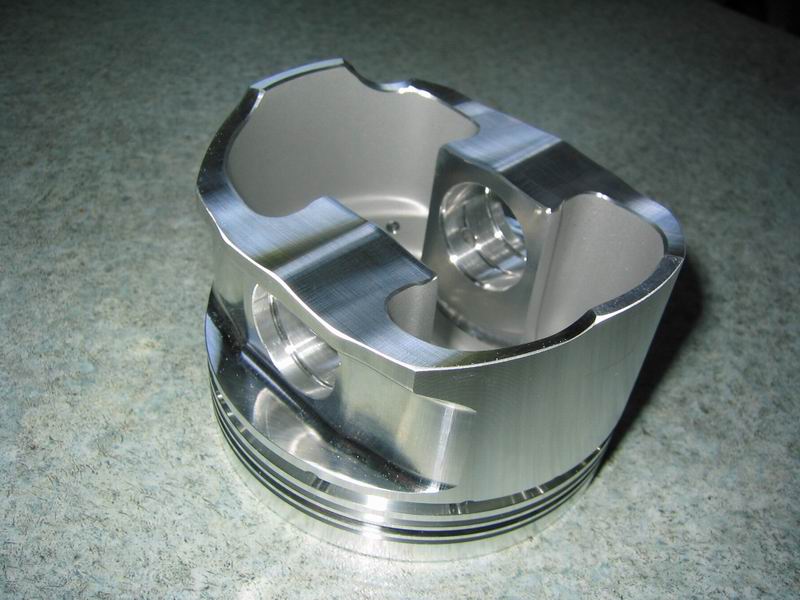

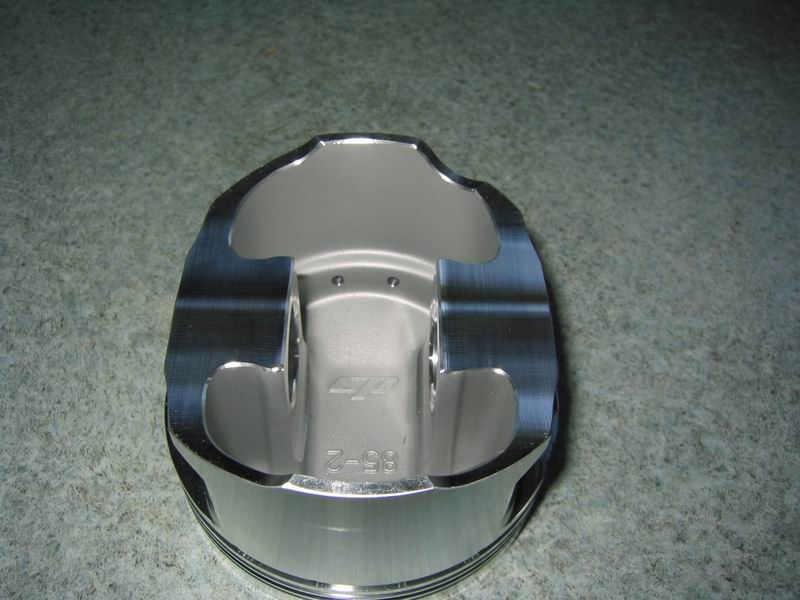

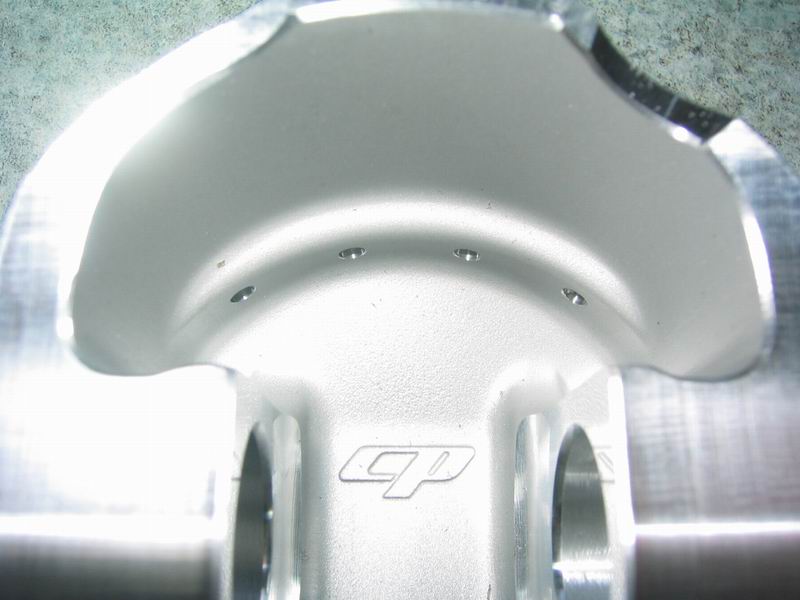

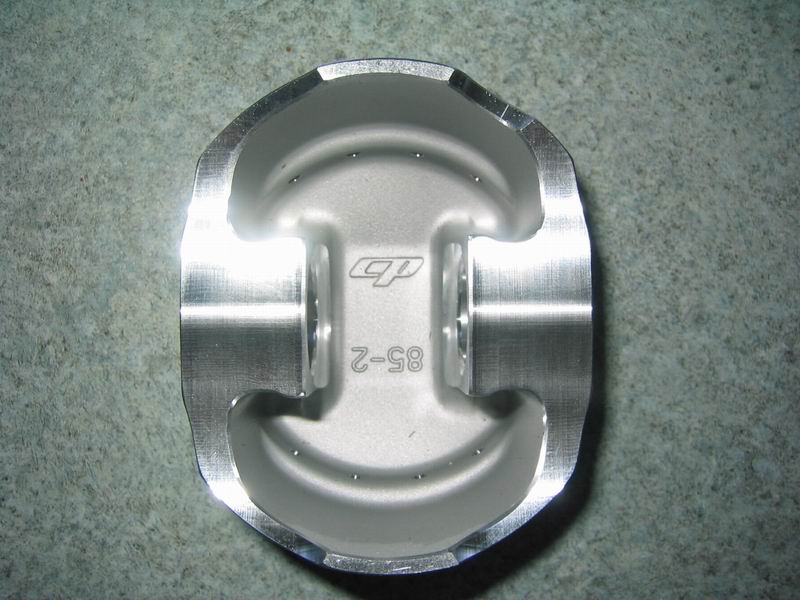

Note the oil squirter cut out in the skirt Above The cut out for the oil squirter can easily be seen here along with the oil drain holes from the scraper rings
