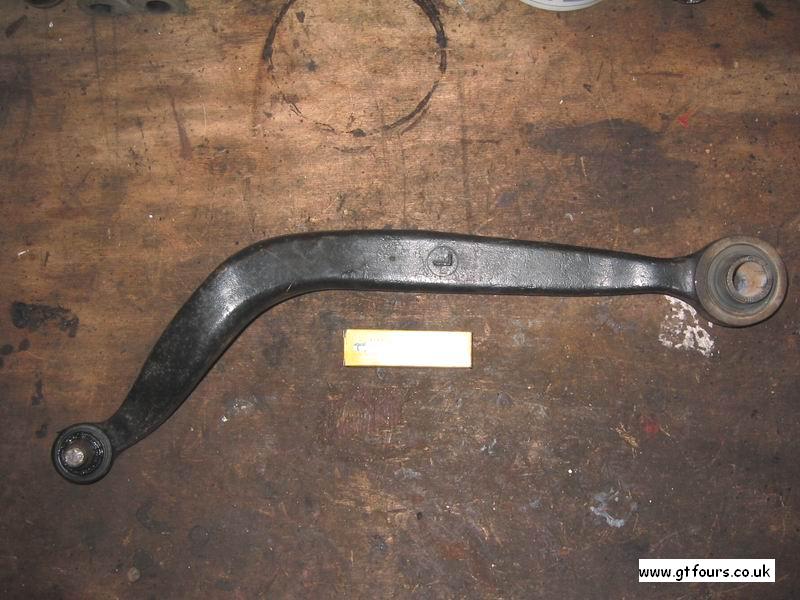

| The lower arm |
Note the 3 sections that can move |

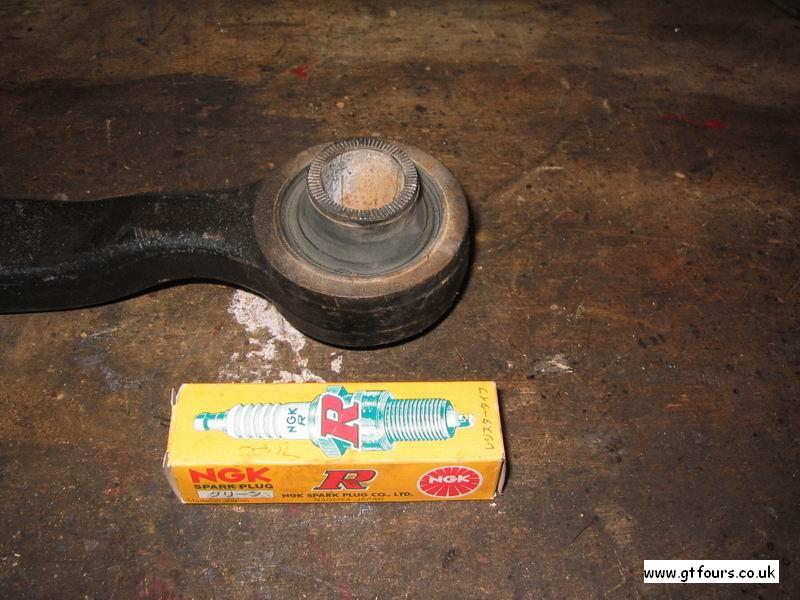

The centre bush seems to wear much faster than the other 2 joints |
One end of the arm attaches to the front sub frame. This joint is similar in nature to the rear spherical hub joints |
| |
 |
 |
 |
 |

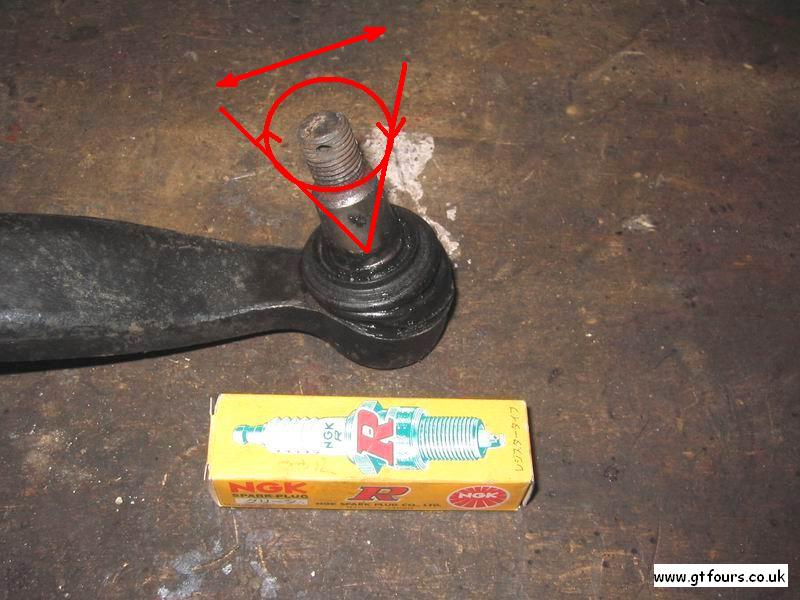

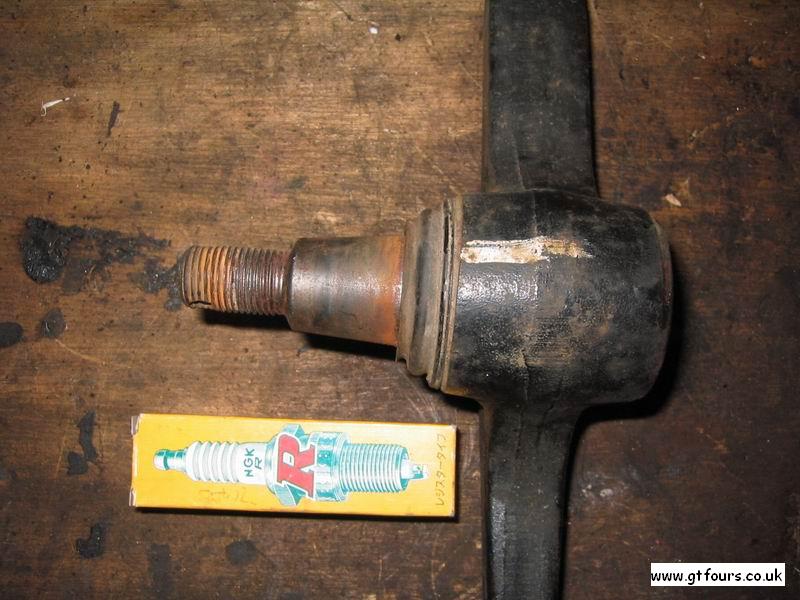

| On the other end is a typical ball joint |
The other arm is the banana arm |

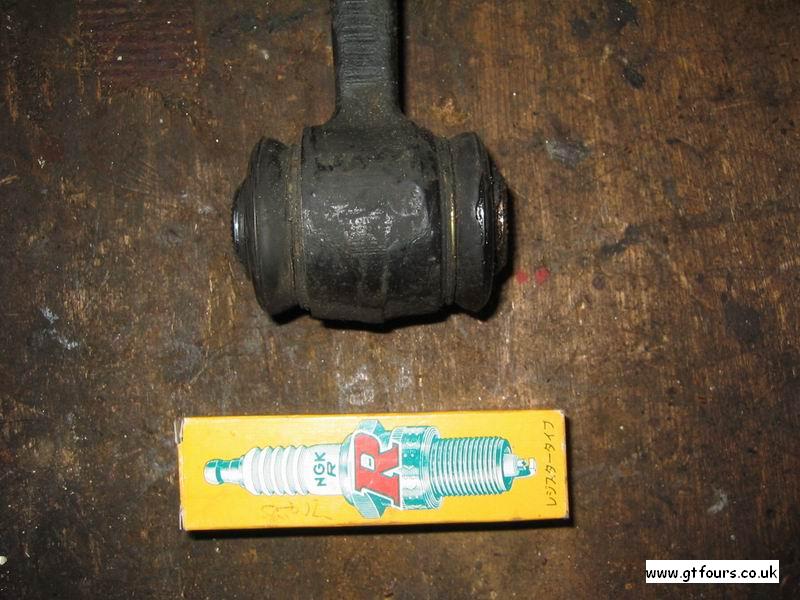

One end had a solid rubber bush that does not move... |

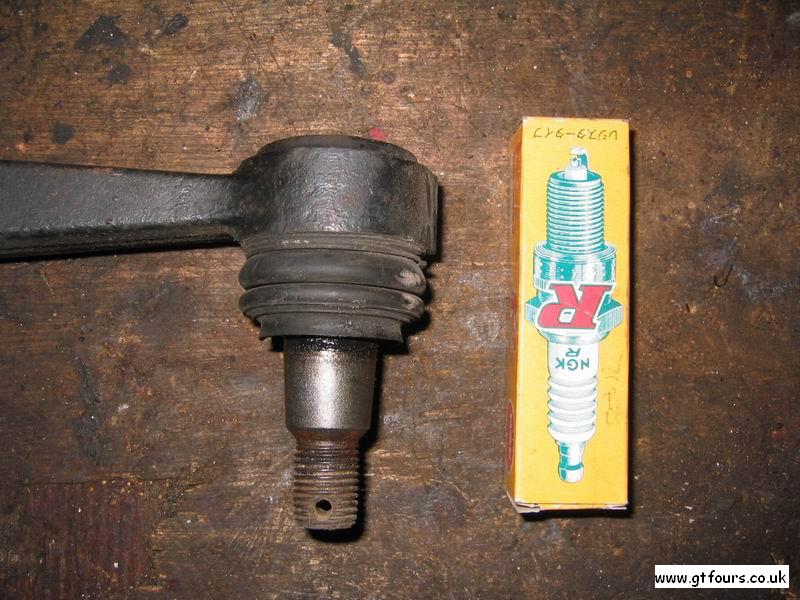

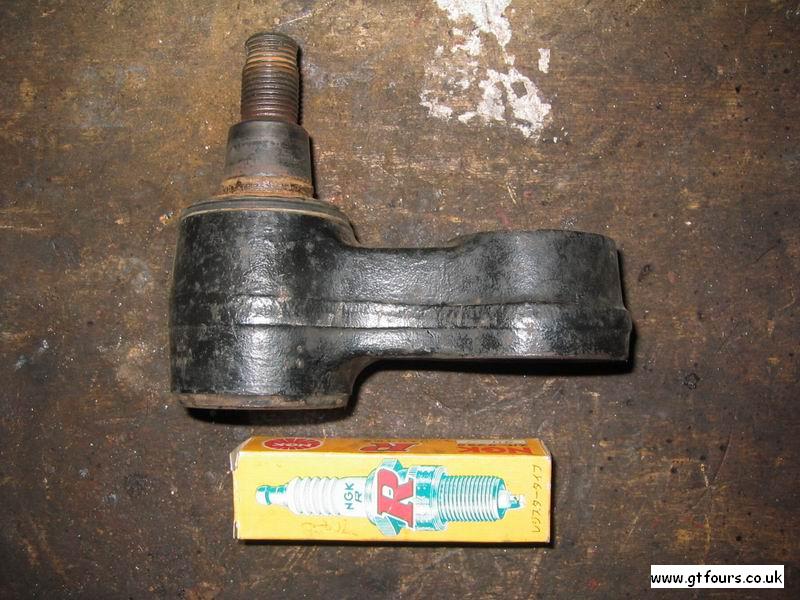

...the other end has a typical ball joint |
| |
 |
 |
 |
 |
| Attached to the lower arm is the figure of 8 link |

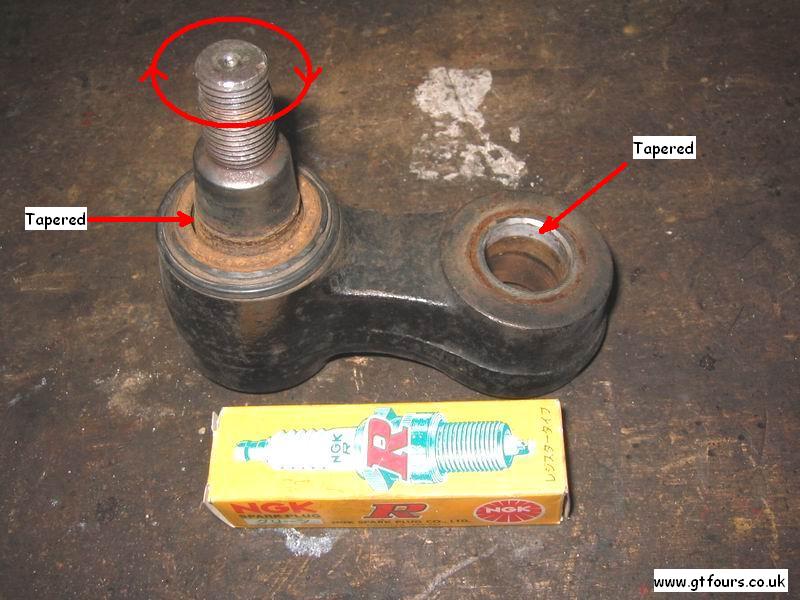

One section of this rotates |
This is also prone to wear |

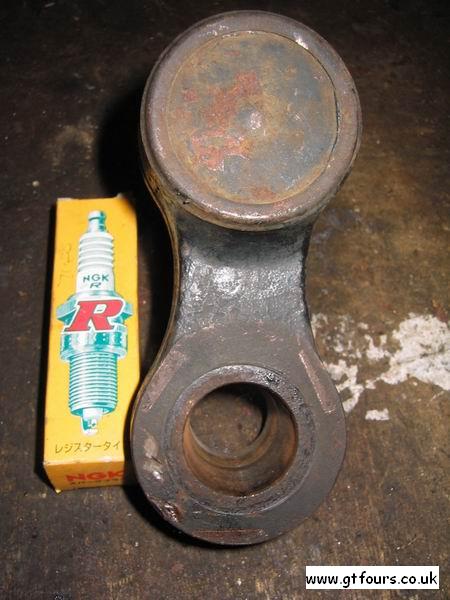

The rear of the figure of 8 link |
| |
 |
 |
|
|

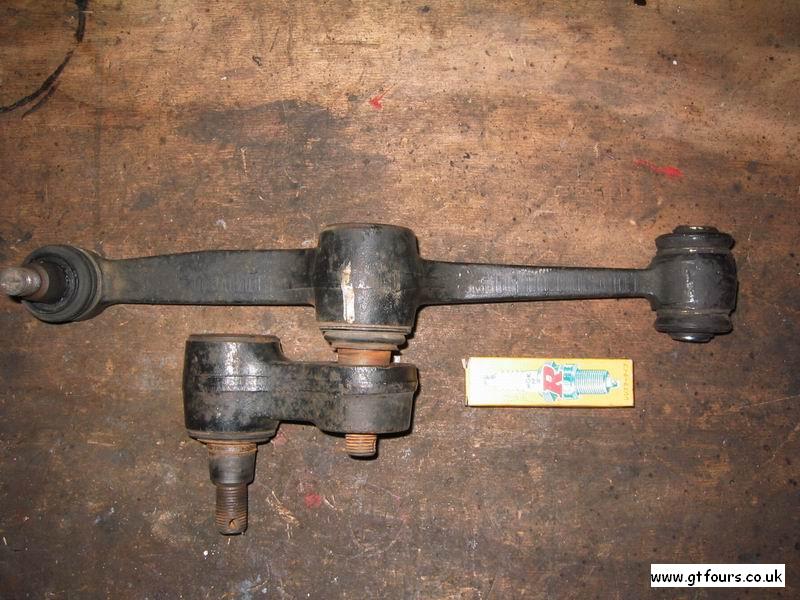

| A partially assembled lower arm and figure of 8 assembly |

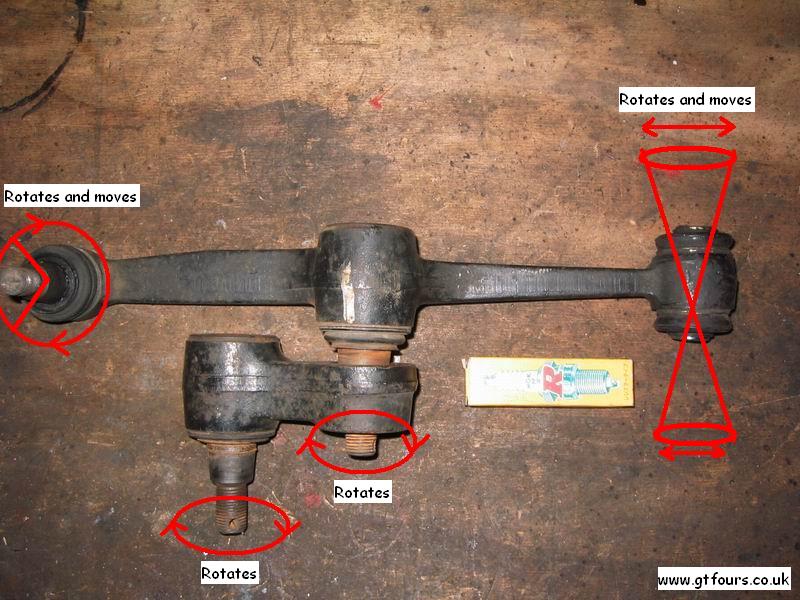

An annotated picture showing the designed movement of the joints! |
|
|
