Toyota Celica GT4 ORC 409D Clutch Pictures

ORC 409D Clutch

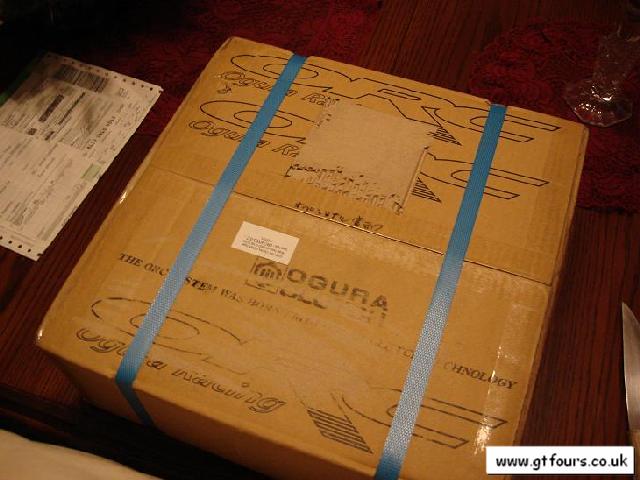

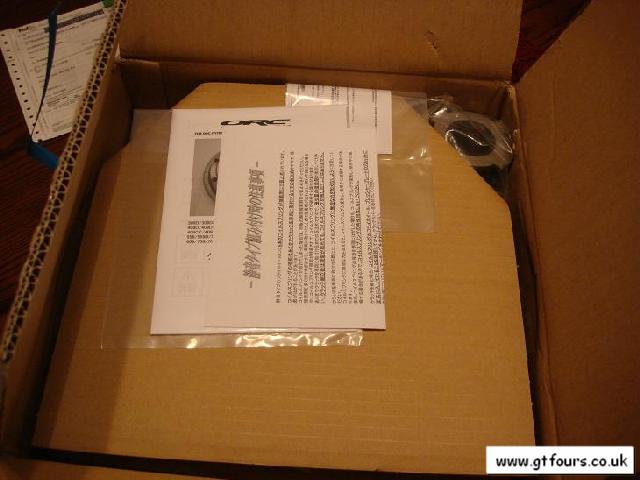

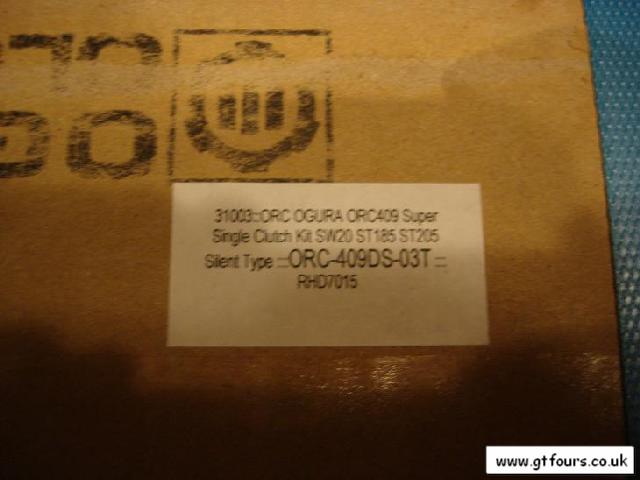

The box ORC-409DS-03T Another view of the packaging Opening the box

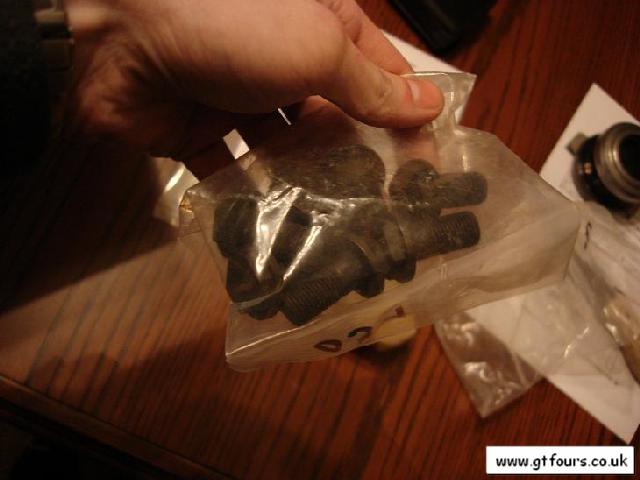

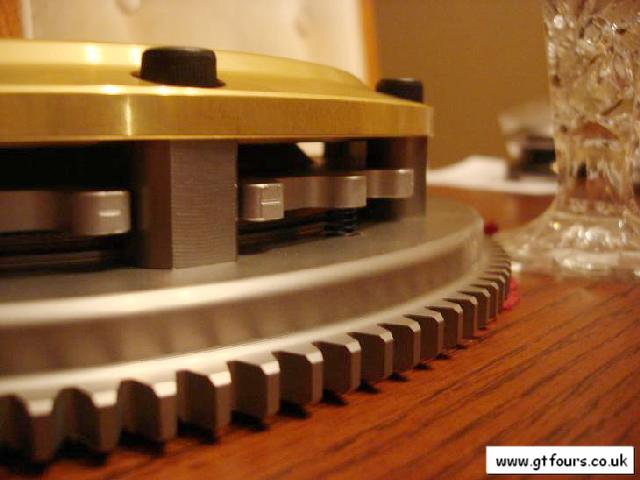

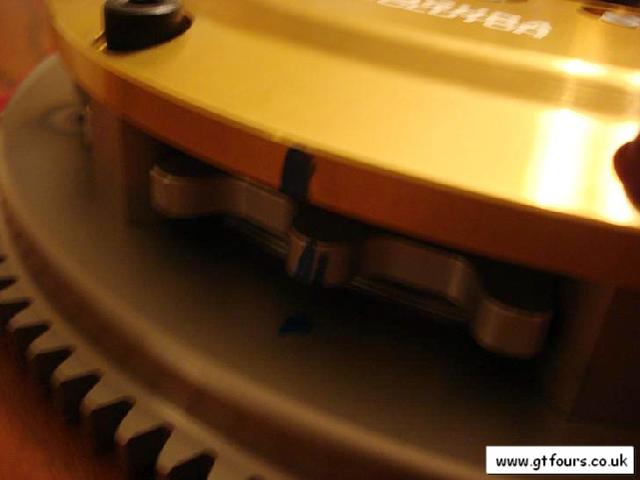

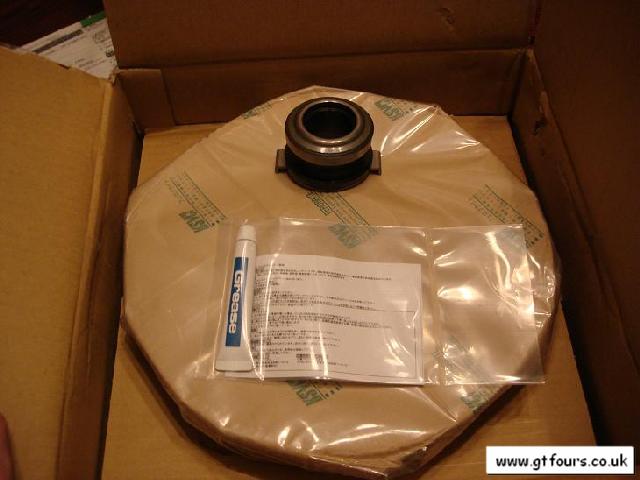

A replacement release bearing is supplied And also some replacement flywheel securing bolts Close up showing the single plate clutch Note the alignment markings - looks like the assembly is balanced before shipping

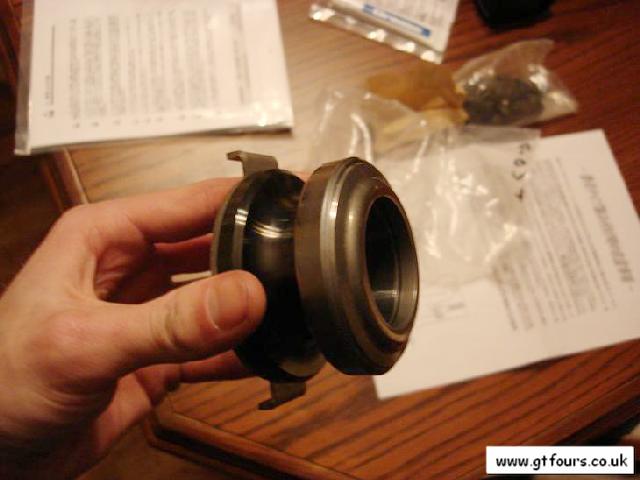

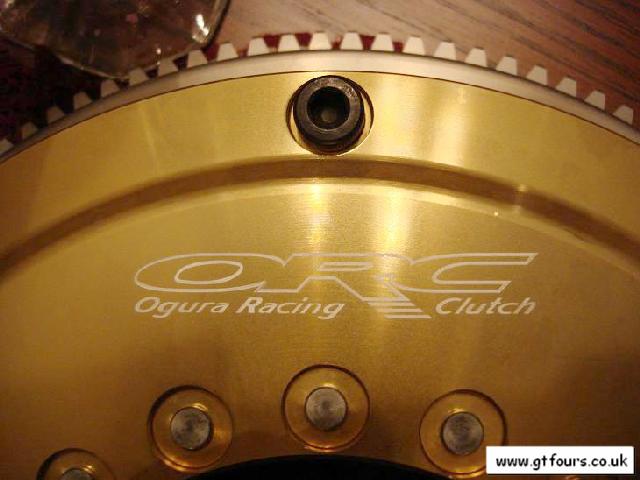

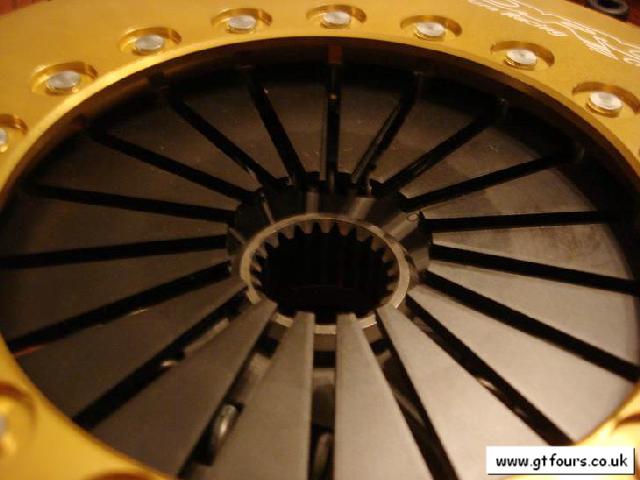

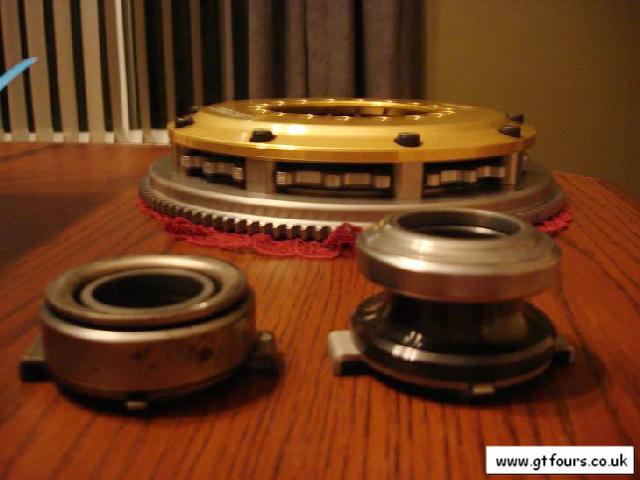

Clutch plate cover The logo and clutch cover retaining bolt The replacement bearing Old and new bearing
(Old is on the left)
Note the replacement bearing is not the same as the OEM bearing

Note



Many thanks to Corey for the pictures
