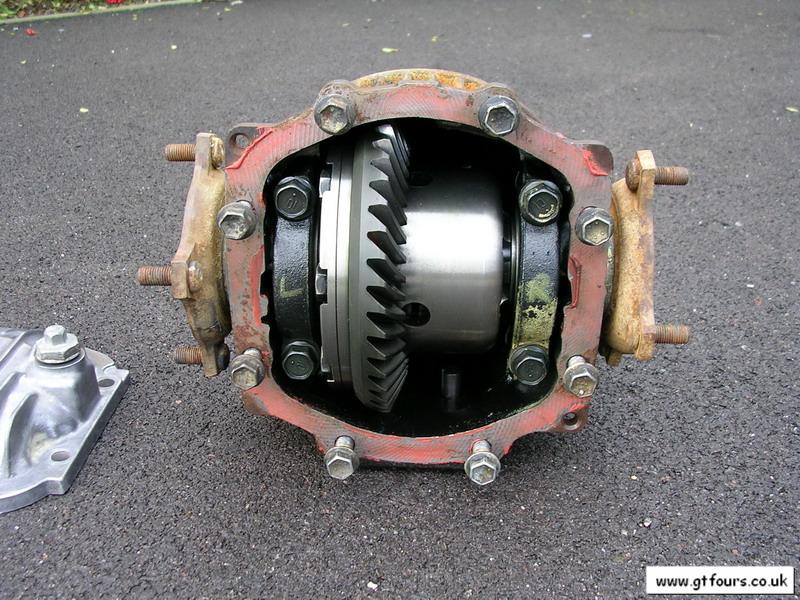

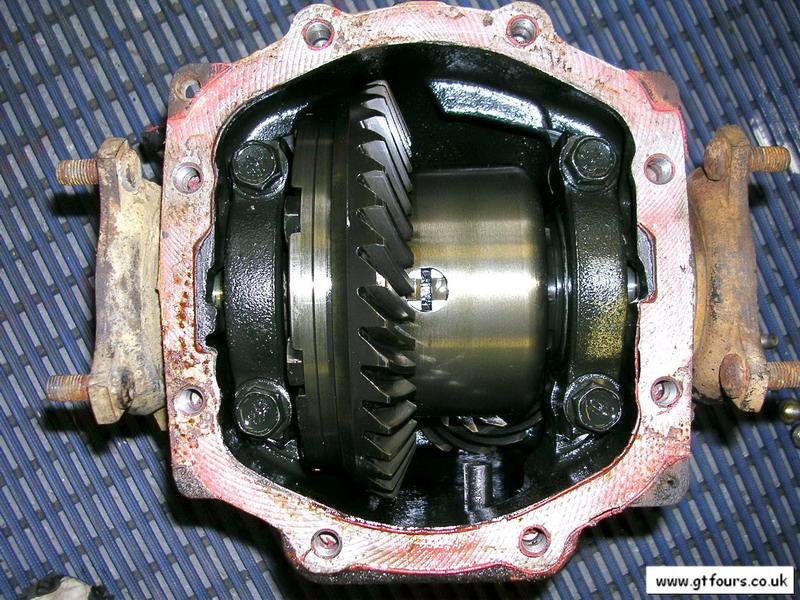

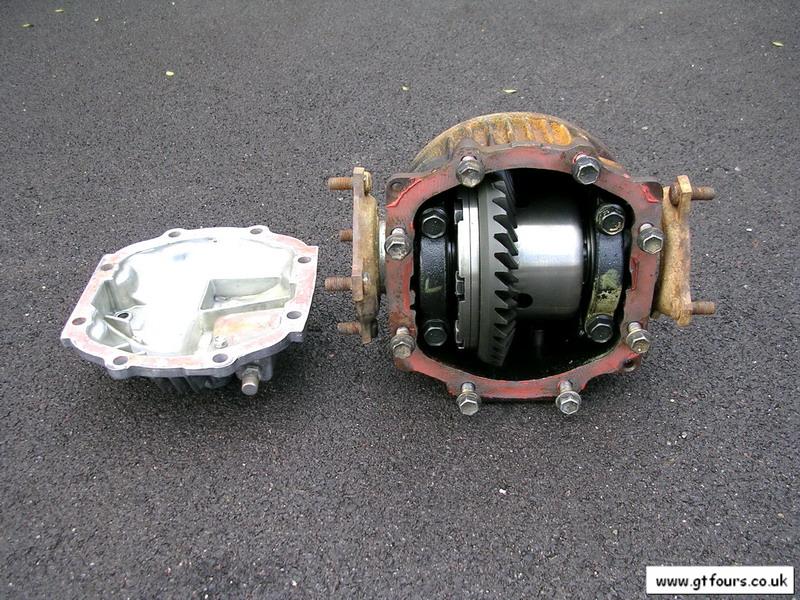

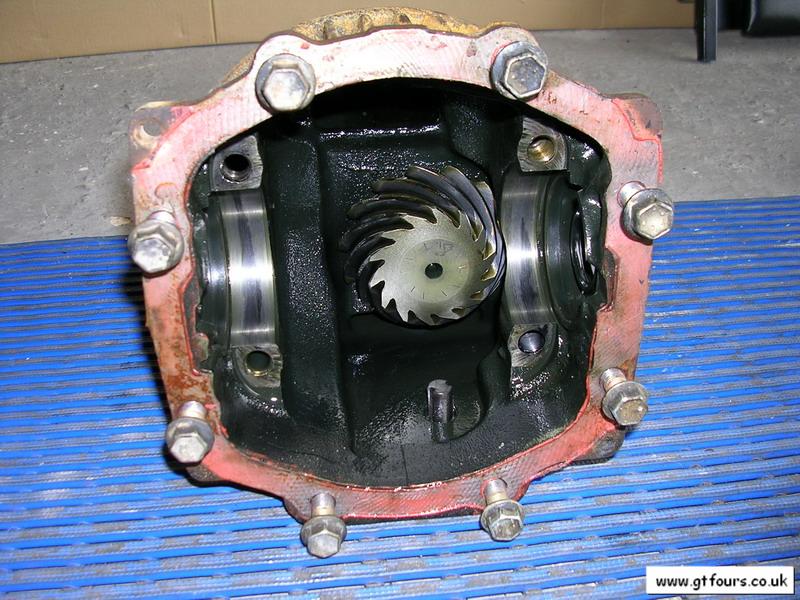

| With the rear cover removed | The diff removed exposes the input shaft | The diff | Close up |
 |
 |
 |
 |
| Bearing | Another view | The other side showing the bearing and the gearing the input shaft mates to | Side view |
 |
 |
 |
 |
| Inside the diff are some plates, note they are ridged | All the plates removed | Another view of the rear of the diff... | ...and another |
 |
 |
 |
 |

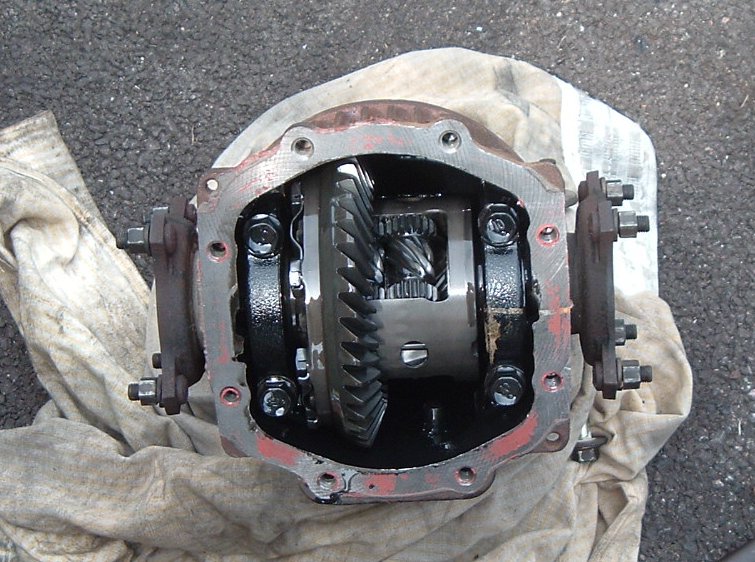

| Front of the diff, note the prop shaft connects to this flange | Top view | Standard 205 Torsen diff | TRD 2 Way LSD |
